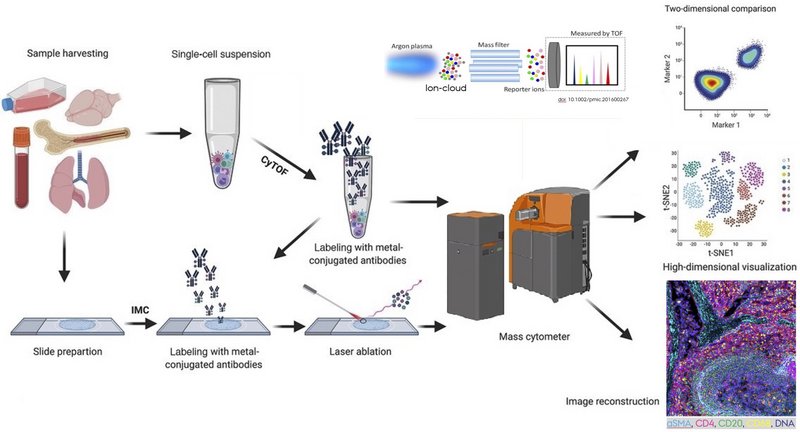

Fig modified from https://doi.org/10.1002/cpz1.118

Single cells or tissue samples are stained with metal conjugated antibodies.

Ablated from the slide (Imaging mass cytometry - IMC) with Hyperion unit or directly injected into the Helios (Suspension mass cytometry - SMC).

With IMC, the spatial information is also reserved, and resolution is 1 µm.

Technology key features:

• Multi-plex protein detection.
  • SMC: 45+ antibody (AB) probes/stain
  • IMC: up to 35 AB probes/stain
• Minimal background signal (no auto-fluorescence)
• Minimal compensation needed (“Spillovers” are predictable and calculateable)
• Easy/flexible antibody handling (panel design, titration, custom antibody/metal combinations)
• Pre-designed antibody panel kits available for mouse and human
• Acquisition speeds:
  • SMC (Helios):  ca. 300-500cells/sec
  • IMC (Hyperion): 1mm x 1mm (1mm²) ablation/100min

How to access CyTOF?

For more information, including price and booking information, please contact the MCU core facility at the Department of Biomedicine, AU.
